Ready to Take Full Control of Your Tank?
Large heavy-duty power manager for aquarium devices!
The Kraken introduces a new concept in aquarium controllers and provides high-power 24V DC switched outputs and a large heavy-duty power supply. This allows “power bricks” and “wall warts” to be removed from aquarium systems, significantly reducing wire clutter.
Max Per Force Port: 8A
Total Max Amperage: 20A
Dimensions 9.5 x 4.75 x 3.2 (LxWxH)
If you’re wondering whether the Kraken is compatible with your aquarium devices, just answer two easy questions. First, does your device have a power supply brick? Second, is your device’s output voltage either 12v or 24v? If you answered yes to both questions, then your device is good to go with the Kraken!

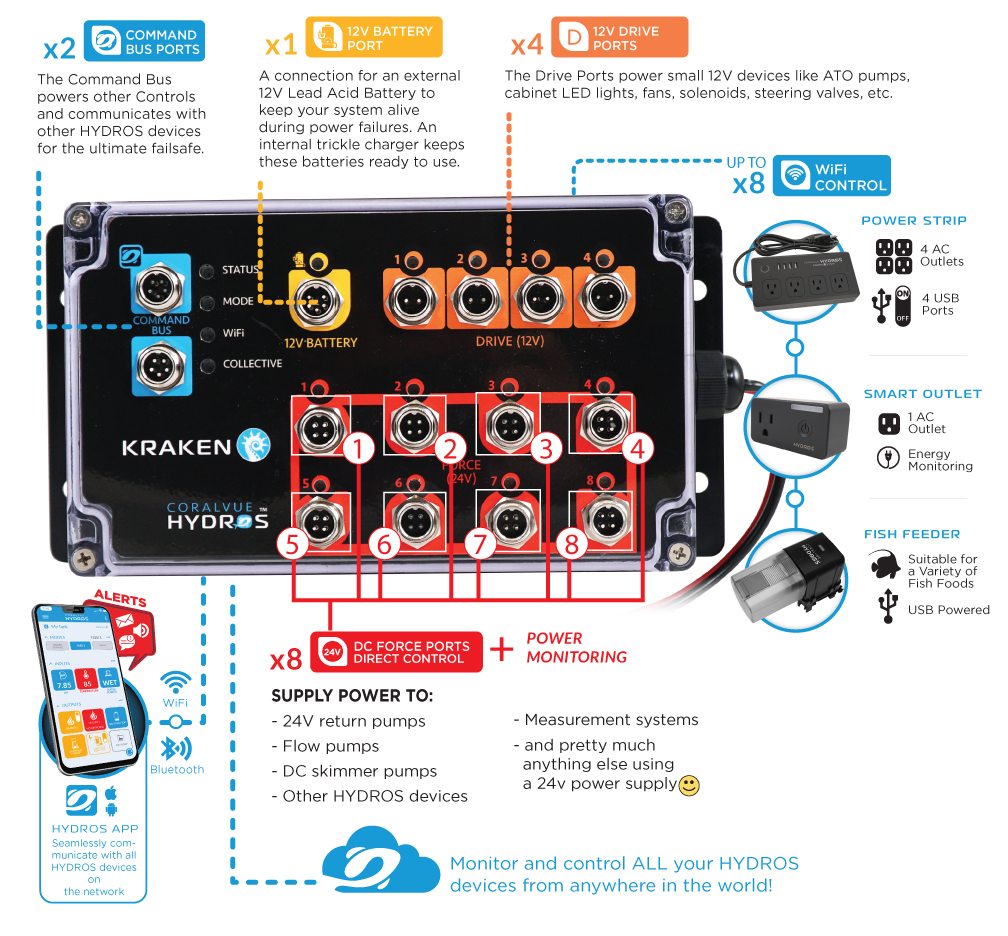

Eight controllable DC power ports, each with individual power monitoring capabilities to safely manage aquarium equipment like lighting, water pumps, protein skimmers, filters, and much more using 24V power.
Drive Ports provide power (switched 12V DC) and communicate between devices! They also monitor current and can be notified if a failure occurs. Drive Ports can support dosing pumps, cooling fans, cabinet LED lights, and more.
A specific connection for an external 12V Lead Acid Battery to keep your system alive during power failures. A battery will keep the entire HYDROS system running in Low Power Mode during a power failure.
The Command Bus not only powers the Control, but it also communicates with other HYDROS devices for the ultimate failsafe.
The HYDROS App allows you to create rules and set schedules to control our HYDROS 4-Outlet WiFi AC Power Strip or HYDROS Smart Plug (both sold separately). For example, quickly turn on or off different pieces of aquarium equipment like pumps, power heads, lights, heaters, algae scrubbers, UV sterilizers, protein skimmers, and more.
Besides reducing the amount of 24V power bricks lying around the aquarium, the HYDROS Kraken is also a fully functioning HYDROS system controller capable of taking over intelligent decisions based on the status of other HYDROS devices within the Collective. The two HYDROS Command Bus Ports on the Kraken allow for a wired connection to any other HYDROS controller to form a collective of all Controls for the ultimate failsafe system. Control and monitor your Kraken power center from anywhere in the world using the technologically advanced HYDROS cloud-based app. The Kraken can also monitor and wireless control up to eight HYDROS WiFi devices.
The HYDROS Control setup with the Kraken is the best option for hobbyists who want organized and reliable power distribution. This setup includes the Kraken, which connects and powers various HYDROS controllers, LED lights, return pump, calcium reactor, and dosing pumps. It also has a battery connection for backup power. The Control X4 handles leak detection, pH and temperature monitoring, and powers the DC micro pump. The WaveEngine V2 controls the system’s four flow pumps. With the HYDROS Control System, hobbyists can have less wire mess, dependable power distribution, and backup battery features.
Ready to Take Full Control of Your Tank?
The Kraken includes one large 24V “super brick” that is an IP67-rated industrial power supply to run all the outputs and the entire HYDROS system. The Super Brick can provide up to 20 Amps of 24 Volt DC power (480 watts). It is manufactured by Mean WellTM, a highly trusted and regarded power supply company.
The HYDROS system forms a web to monitor and control equipment like water level sensors, automatic top-off pumps, and other devices. Unlike other automation systems, the HYDROS Control can eliminate communication problems and maintain control of the aquarium even if a device is removed or shuts down.
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of an intelligent aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
Leaving a cord unplugged or forgetting to turn a device back on can have devastating consequences on your aquarium. With the HYDROS App’s notification alerts, you can protect your investment and turn a possible disaster into nothing more than a simple inconvenience.
