HYDROS Rope Leak Sensor Kit

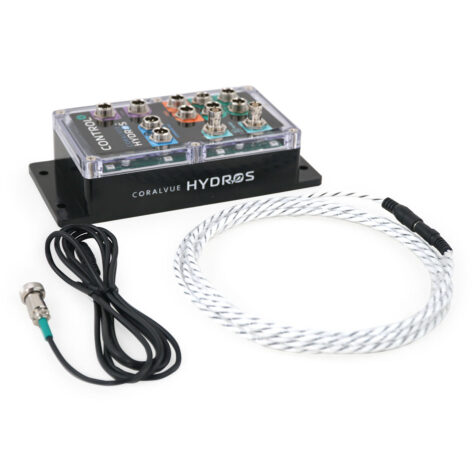

The HYDROS Rope Leak Sensor is a flexible rope-like material that detects the presence of moisture anywhere along the rope. It can sense when freshwater or saltwater is underneath it and use that information to protect your aquarium, home, or office from serious damage. The rope leak sensor plugs directly into any available Sense Port on the Control XS, Control X2, Control X3, Control X4, Control X10, or any future HYDROS Control device.

Where to Buy

Protect your investment both inside AND outside of your aquarium. Avoid sudden disaster by lining any large body of water with the flexible HYDROS Leak Rope Sensor.

Accessory Highlights:

Protects your aquarium and your home from a catastrophe

Allows you to take immediate actions such as shut off pumps and/or shut down protein skimmer*

Receive a mobile alert when leak is detected

Daisy chain up to 50 rope leak sensors together (Extension Rope Leak Sensor sold separately)

Powered and monitored by plugging into a Sense Port on a HYDROS Control

Official CoralVue HYDROS Accessory

One (1) Year Warranty

*Requires HYDROS WiFi Power Strip or HYDROS Smart Plug to control power for other devices.

Applicable with the following HYDROS Devices:

Control XS
Control X2
Control X3
Control X4
Control X10

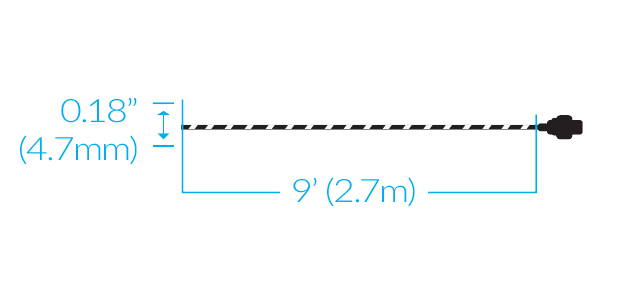

Specs:

Rope Length – 9ft (2.7m)
Diameter – 0.18in (4.7mm)

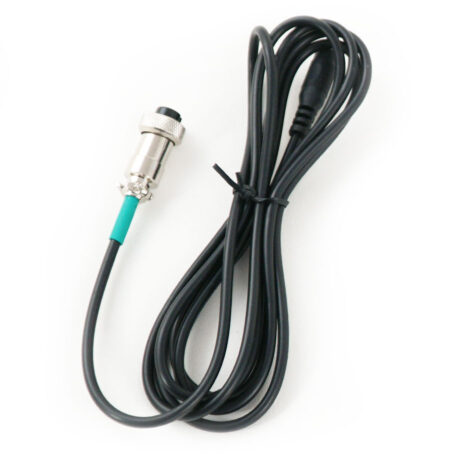

Each HYDROS Leak Rope Sensor has a GX12 aviation-style connector that securely plugs into any HYDROS device with an available Sense Port and DOES NOT require any additional power source to operate.

Step 1. Install Sensor

Install rope leak sensor in appropriate and desired location.

Step 2. Attach to Controller

Connect sensor to any available green Sense Port.

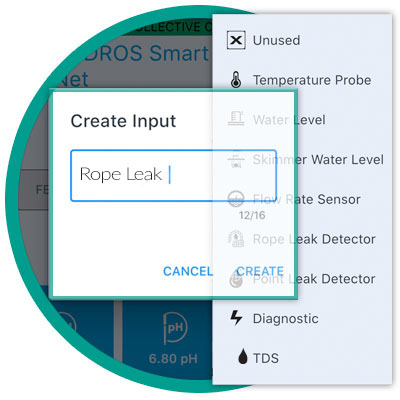

Step 3. Add to App

1. Enter Input Name
2. Select Input Type
3. Set-up Sensor Settings

It’s Now Easier than Ever to Add Sensors to Your Network!

No complicated coding, debugging or frustrating workarounds – it takes only seconds to add a sensor to your network.

How to add an Input

HYDROS Rope Leak Sensor

The HYDROS Rope Leak Sensor is the first of its kind in the aquarium industry. The moment water comes into contact with it, you will be immediately notified.

Wrap the rope leak sensor around your aquarium, sump, stand, or wherever else you like. This type of sensor makes a lot more sense when you want leak detection security in a wider area. You can configure the HYDROS app to perform whatever action(s) you want to happen when a leak is detected: flash a specific light color on your HYDROS controller, turn off a pump, shut down your protein skimmer, send you a mobile alert so you can come home (or ask a friend to check on the tank). It’s easy to do and you’re in control.

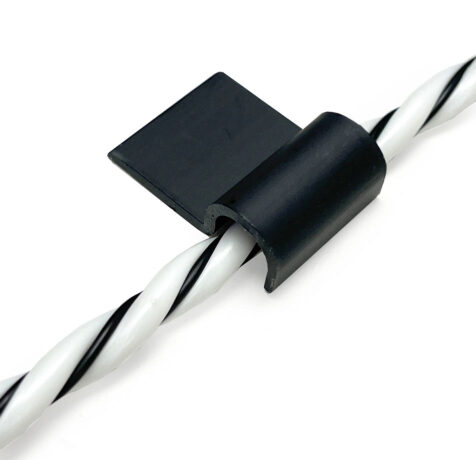

To install the HYDROS Rope Leak Sensor, simply plug the sensor into a Sense Port on your HYDROS Control device. Next, place the rope flat on the surface where liquid detection is desired. If tape is required to hold the rope in place, be sure to only apply it on the ends. You want to expose as much of the sensor as possible for maximum protection. Once the rope sensor is in place, it is very important to test it to ensure it’s working properly.

Test Rope Leak Sensor

To perform a test, open the HYDROS app on your mobile device and configure the Sense port so the rope sensor is on. Drip a bit of tap water across the rope sensor so the black and white sensing cables come into contact with the liquid. Monitor the sensor’s status in the HYDROS app to check if it’s reading is dry or wet. If everything looks good, you’re done! Dry the cable and you’re ready to configure alerts and equipment to take action if a leak occurs.

You don’t have to occupy another Sense port to secure a larger area. HYDROS Leak Detection Rope Sensors can be daisy-chained together to form a larger perimeter for protection. Got a big tank? You can lengthen the line of defense to lasso around your large aquarium by simply connecting multiple rope sensors together. Leak detector ropes do not need an additional power source, even if you connect them together. Rope leak detectors do not occupy outlets on power strips or require a HYDROS Drive port connection to operate.

HYDROS Leak Detection Rope Sensors offer users 24/7 remote monitoring. Be instantly notified at the first sign of a leak so you can prevent a water damage. Tap into the HYDROS app to immediately check the status of water parameters, equipment, power strips, and smart plugs. Make decisions based on real-time data to take appropriate corrective actions from anywhere and at any time.
